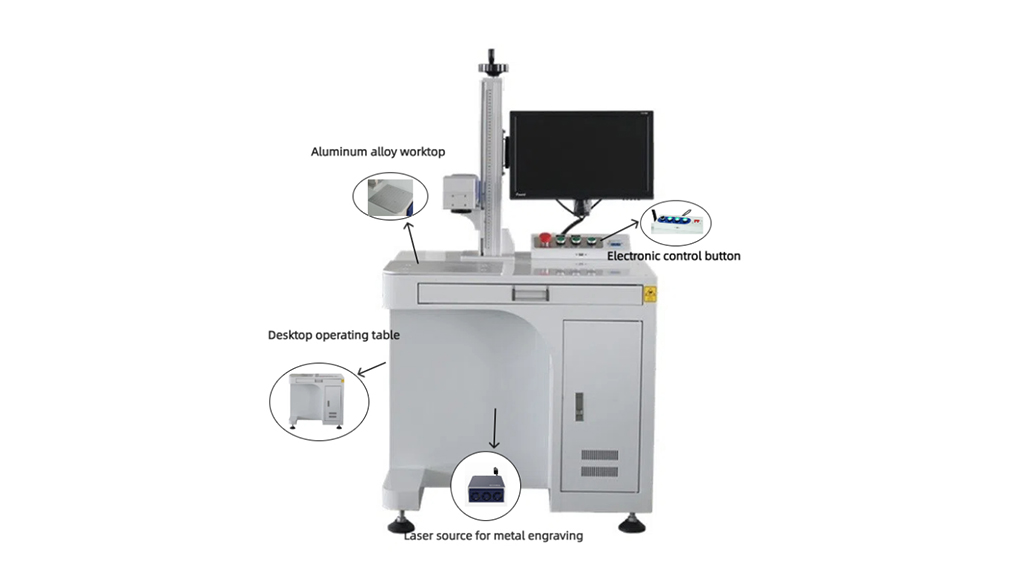

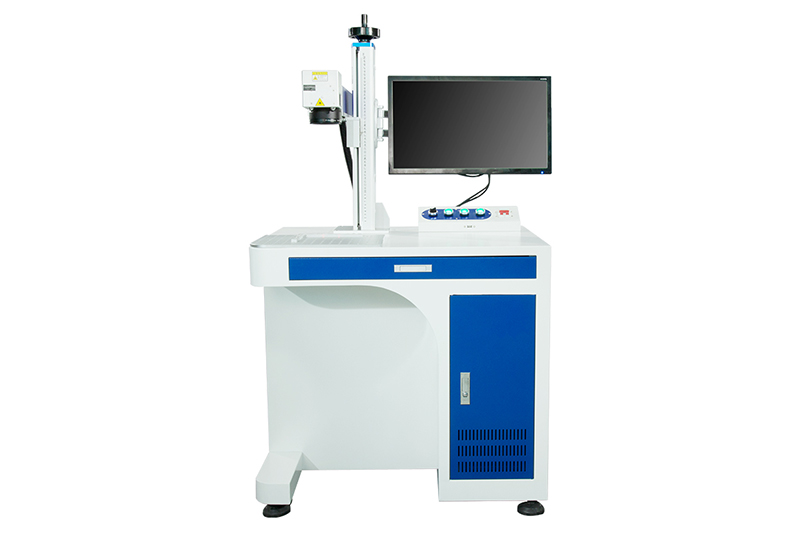

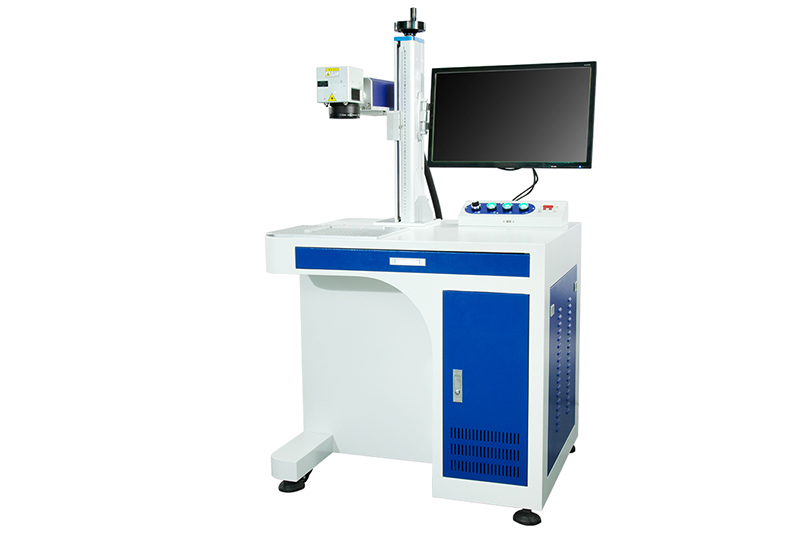

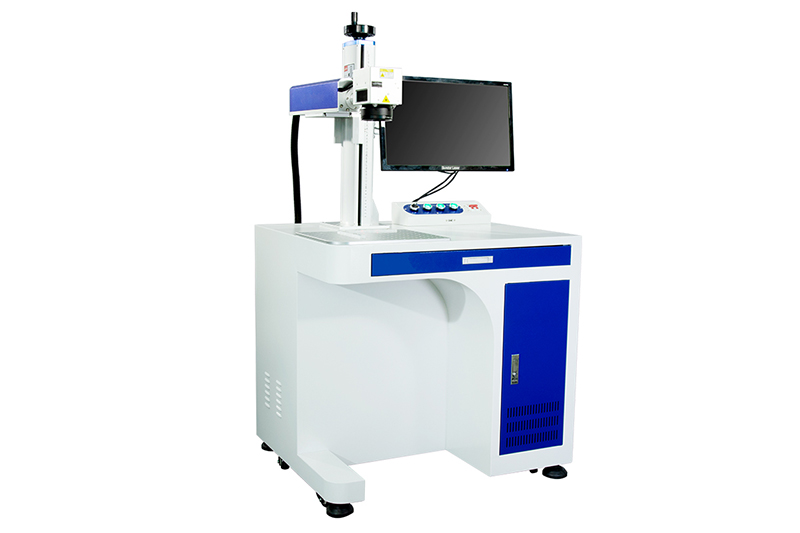

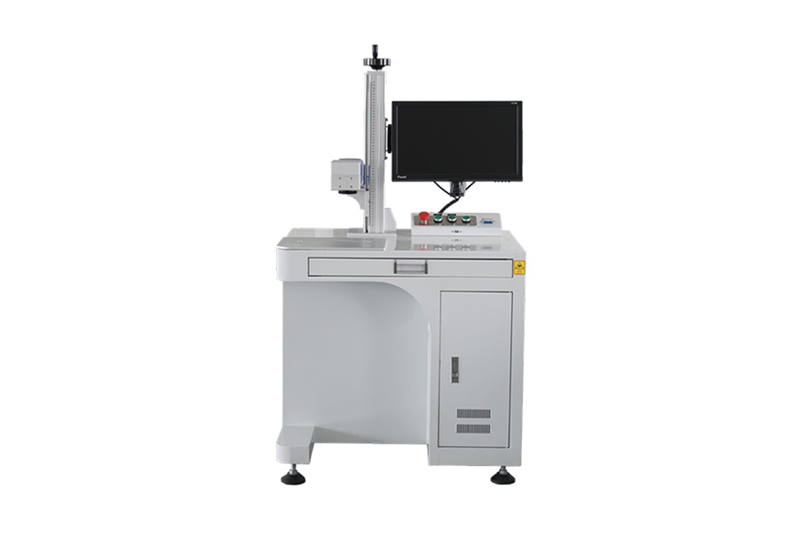

Fiber Laser Engraving Machine
5.0 (611)
Laser power：20w/30w/50w/100w/200w
Marking size: 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm
Ease of Use for Beginners
Precision Marking Made Affordable
Ideal for Small-Scale Metal Work
Feature:
1. Powerful laser technology, unlike conventional marking systems, can create deep engravings on metal.
2. Simple operation, with automatic engraving via software settings.
3. No consumables, low cost.
4. Precise engraving results with minimal errors.

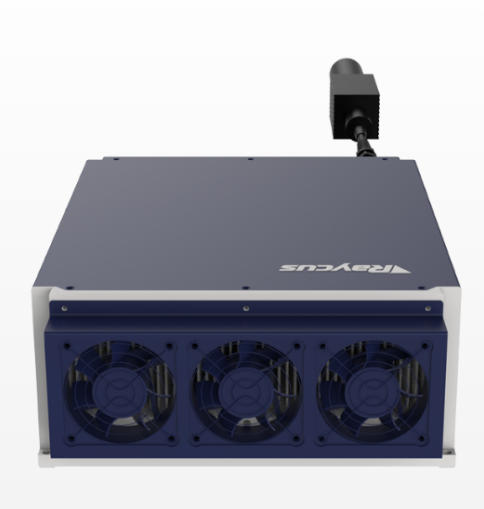

High power laser source
Professional industrial-grade metal engraving laser source, suitable for all kinds of metals, high laser quality and high efficiency
High speed Digital Galvanometer
Adopting high-speed oscillating motor (optional US CTI motor and drive) for better metal engraving effect
BJJCZ Control Board
Supports a wide range of engraving processes, and port-controlled features that make it easy to automate the machine.
EZCAD Control Software
Powerful editing features, numerous laser processing plug-ins, multi-language support, support for vector, bitmap and variable files.
Optional Accessories
Technical Specifications
|
Laser power |
20W/30W/50W/100W/200W |
|
Engraving area |
110mm *110mm/150*150mm/175*175mm/200*200mm/300*300mm |
|
Engraving depth |
0-2mm |
|
Marking head |
Sino-Galvo or Qinlong galvanometer scanning head with inner red light |
|
Aluminum alloy pillar |
500mm |
|
Laser weave length |
1064nm |
|
Frequency of pulse |
20-80KHZ |
|
Beam quality |
M²:1.5 |
|
Marking speed |
7000-12000mm/s |
|
Marking depth |
0.01-1mm |
|
Repetition Precision |
0.01mm |
|
Minimum Line Width |
0.017mm |
|
Minimum Character |
0.2mm |
|
Cooling mode |
Air cooling |
Laser Marking machine Sample
