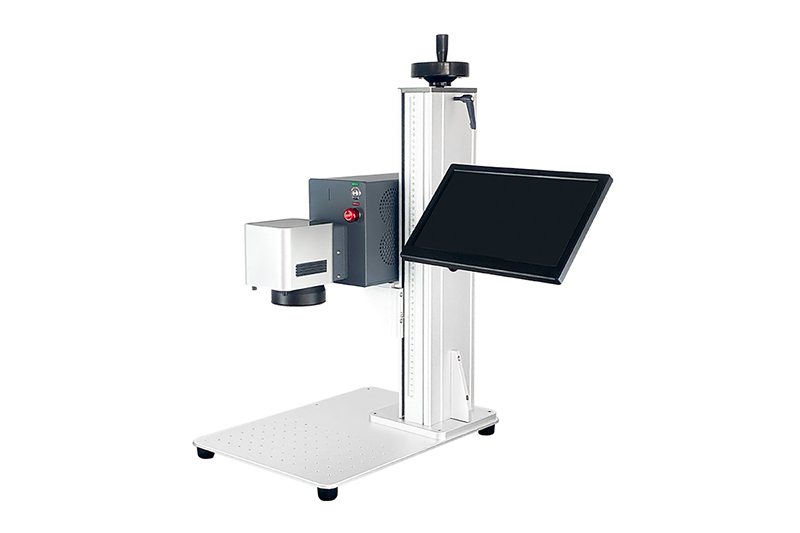

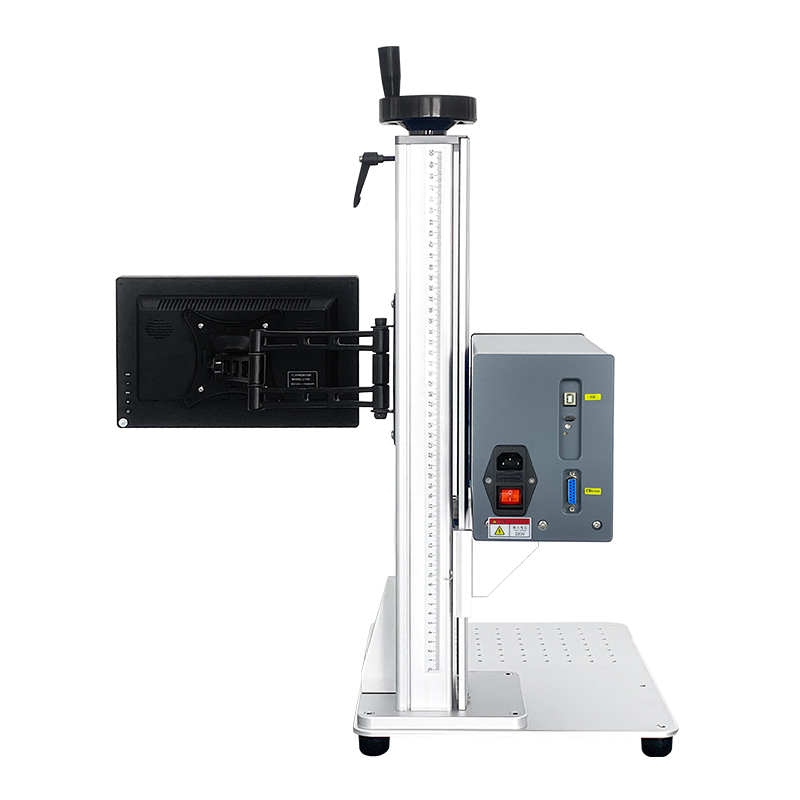

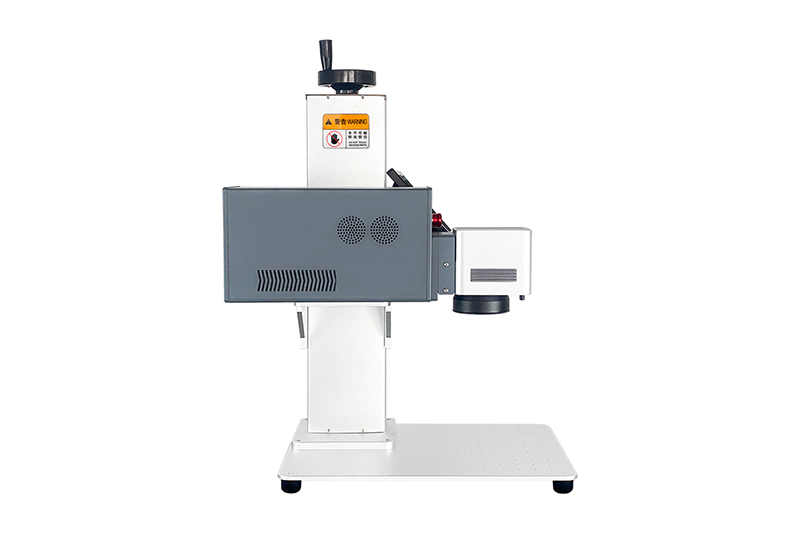

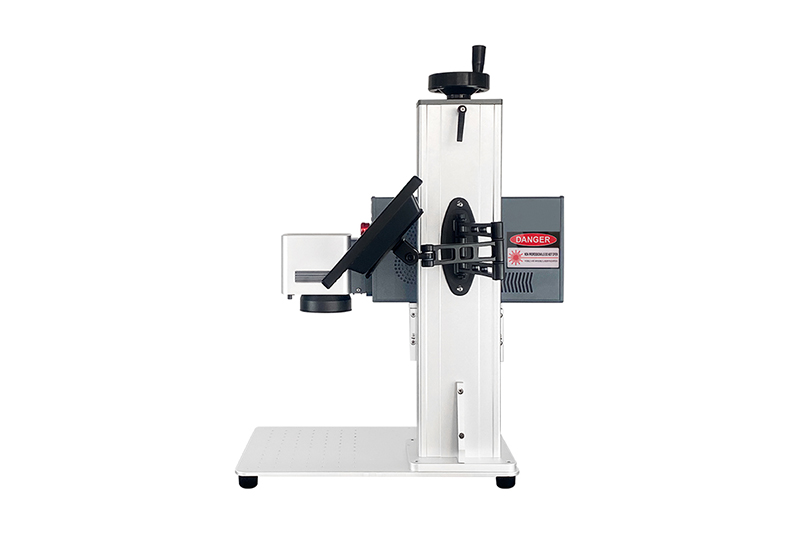

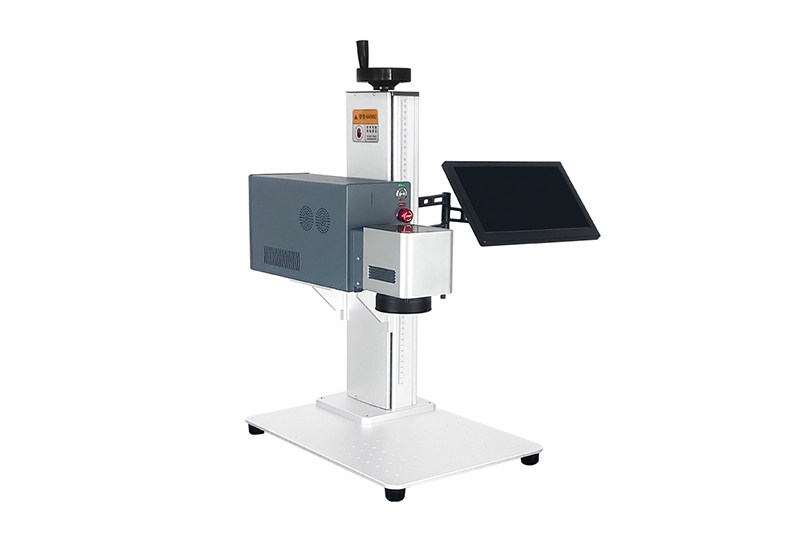

Mini Portable Fiber Laser Marking Machine
5.0 (611)
Laser power：20w/30w/50w/100w
Marking size: 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm
Ease of Use for Beginners
Precision Marking Made Affordable
Ideal for Small-Scale Metal Work
Feature:
- Compact size, light weight, easy to move, suitable for various environments.
- Comprehensive functions, suitable for engraving a variety of metal materials.
- No consumables, extremely low operating costs, high return.
- Environmentally friendly, no pollutants, no waste.

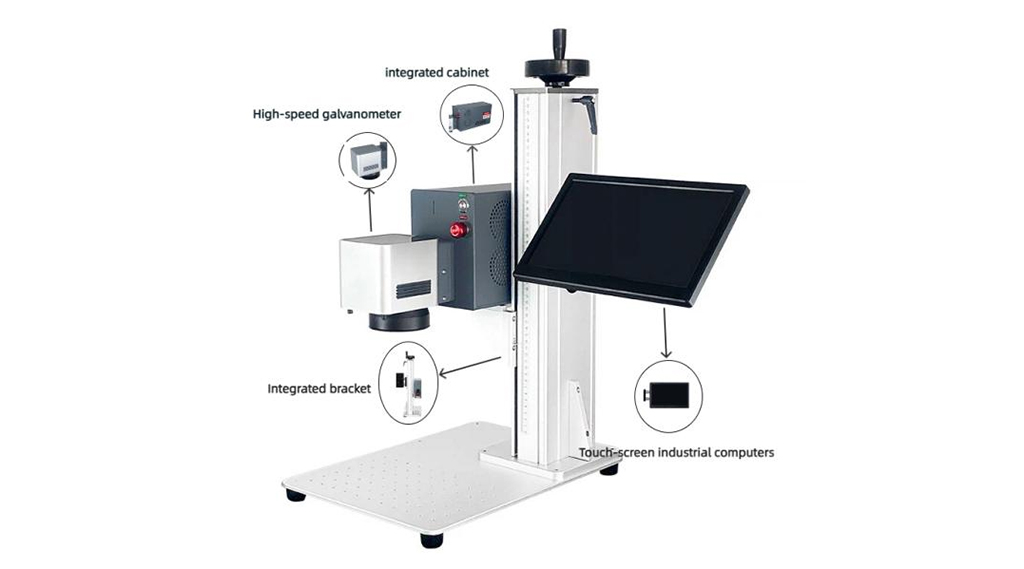

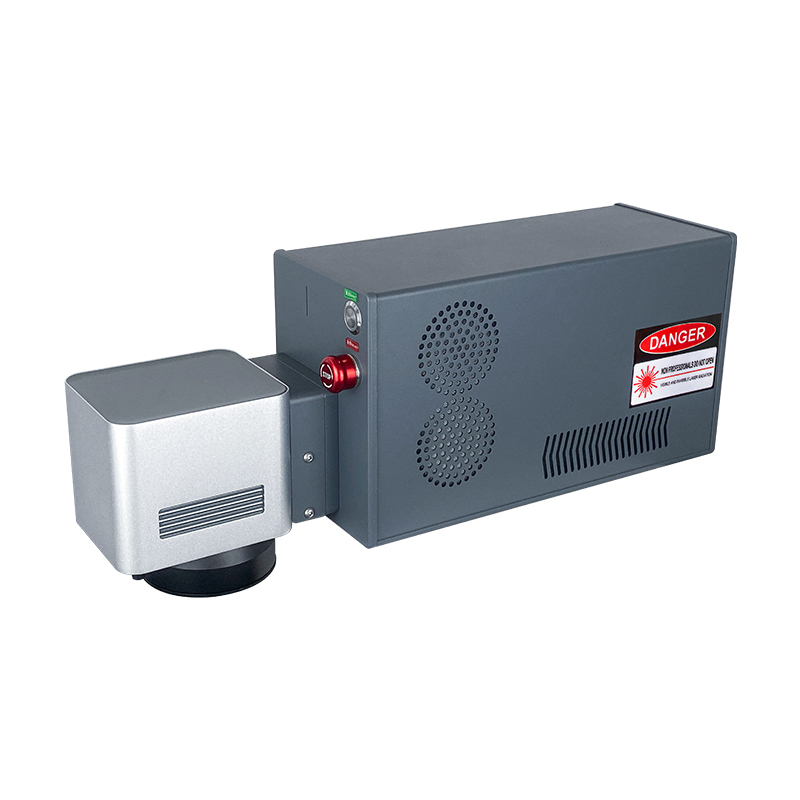

Integrated Cabinet
Laser, power supply, and board are integrated into the cabinet, with a simpler design and lighter weight.

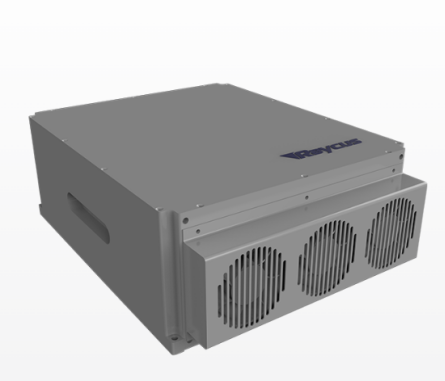

Raycus laser source
Genuine Raycus laser, peak power, high single pulse energy, high marking/engraving efficiency.
BJJCZ Control Board
Supports a wide range of engraving processes, and port-controlled features that make it easy to automate the machine.
EZCAD Control Software
Powerful editing features, numerous laser processing plug-ins, multi-language support, support for vector, bitmap and variable files.
Integrated bracket
The machine body, industrial control computer, integrated design, reduces floor space and increases machine flexibility,position and height can be adjusted at will.
Optional Accessories
Technical Specifications
| Laser power | 20W/30W/50W |
| Marking area | 110mm *110mm/150*150mm/175*175mm/200*200mm/300*300mm |
| Marking head | Sino-Galvo or Qinlong galvanometer scanning head with inner red light |
| Aluminum alloy pillar | 500mm |
| Laser weave length | 1064nm |
| Frequency of pulse | 20-80KHZ |
| Beam quality | M²:1.5 |
| Marking speed | 7000-12000mm/s |
| Marking depth | 0.01-1mm |
| Repetition Precision | 0.01mm |
| Minimum Line Width | 0.017mm |
| Minimum Character | 0.2mm |
| Cooling mode | Air cooling |
Laser Marking machine Sample
